Clarice Hung
Maritime Museum Project

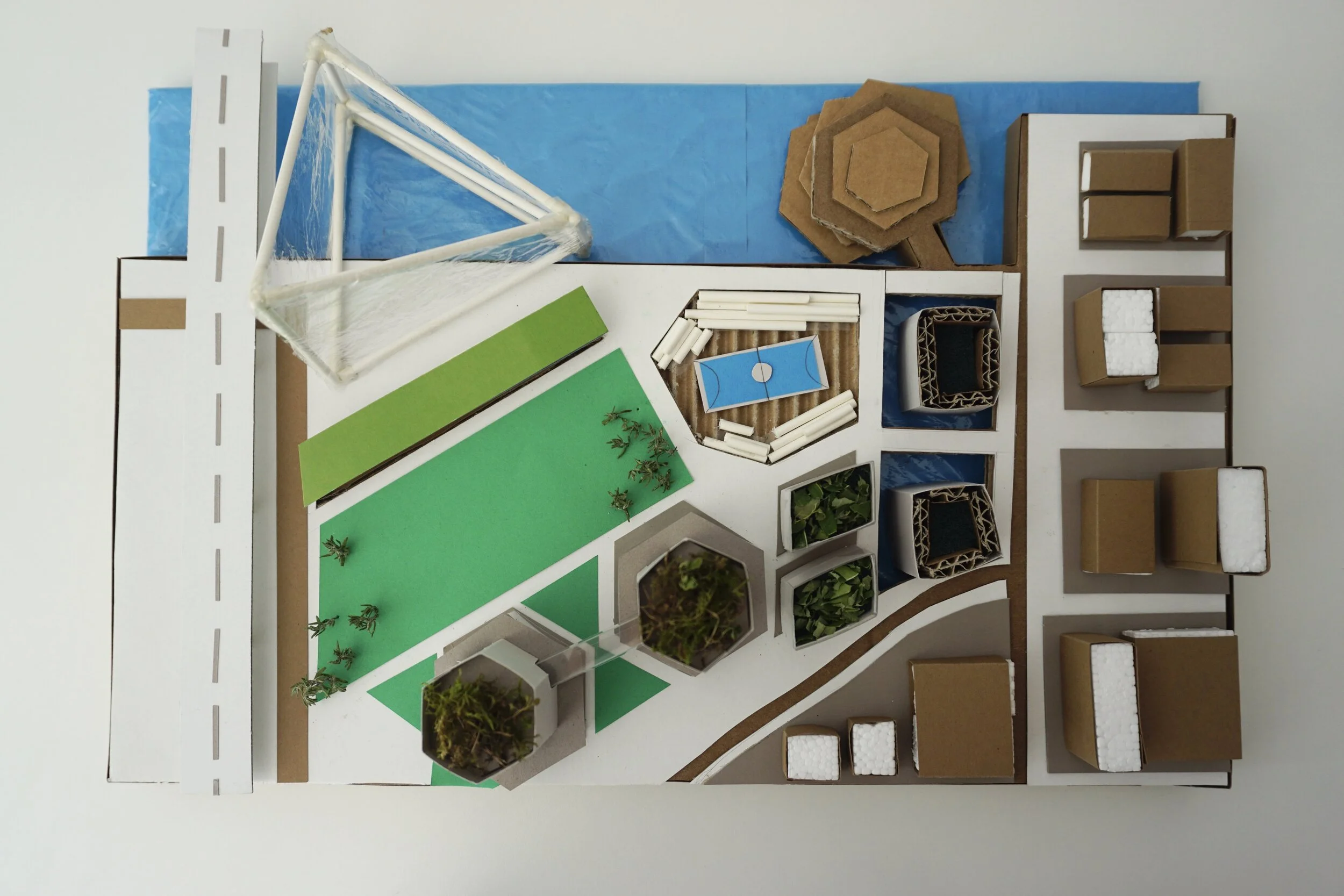

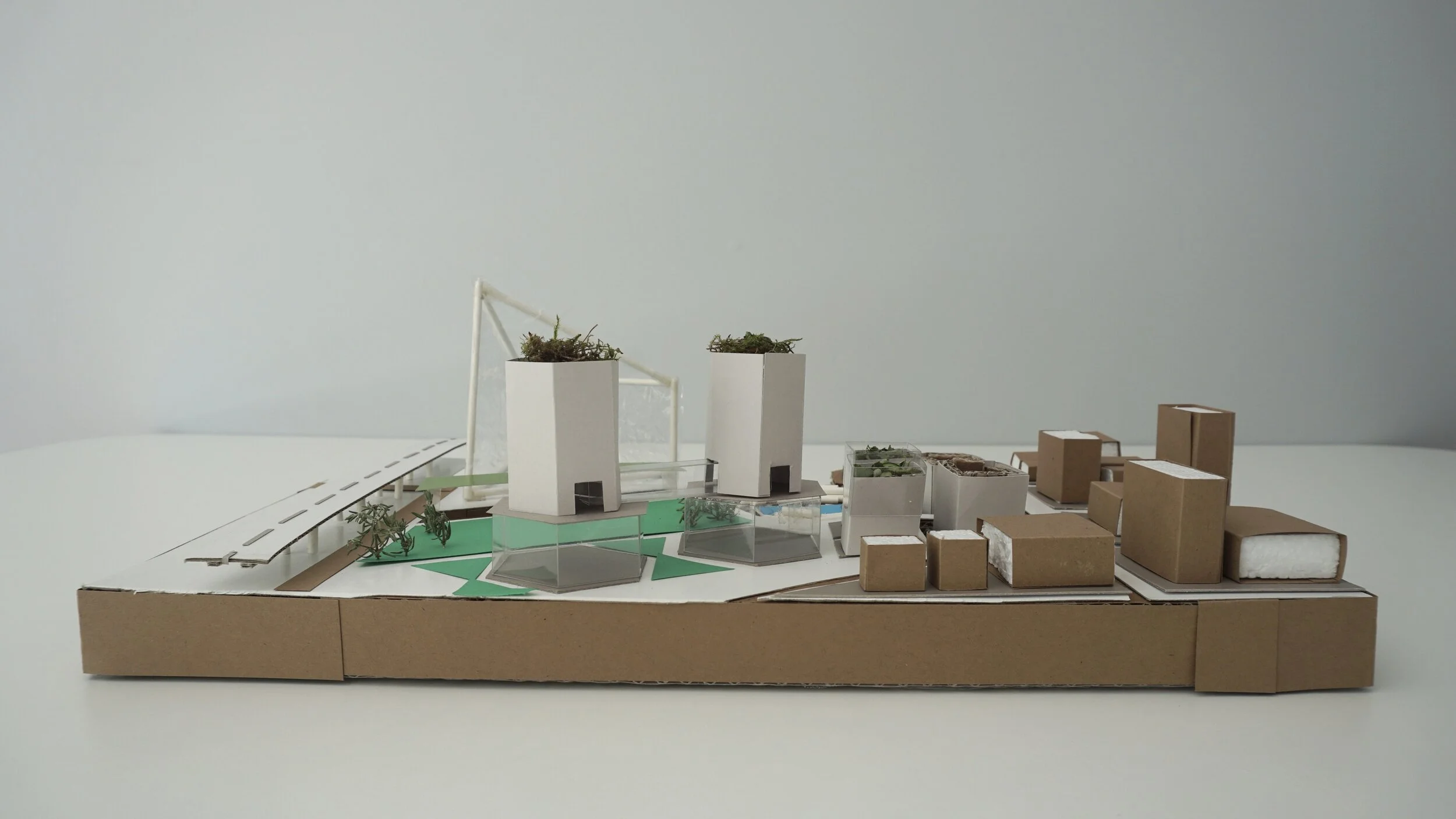

(1) "Geofiguratime Museum", (2) South view, (3) North view, (4) Top view / Concept Site Model at 1:1000 / 10.5 x 16 inches / Cardboard, foamboard, paper, stick, plastic, grass
Remodel of Vancouver Maritime Museum, constructing the museum in an undeveloped area in False Creek.

"Water and Green" / Design Development: Exterior Perspective Drawing / 8.5 x 12 inches / paper, fine liner, marker / Two-point perspective.

"Above and Under Water" / Design Development: Interior Perspective Drawing / 11 x 8.5 inches / paper, fine liner, colour pencil

Concept Plan / 8.5 x 11.5 inches / paper, colour pencils / Incorporated configuration, greenery and water, to create a museum and residential in a new site.

AA’, BB’ / Two Concept Sections / 8.5 x 11 inches / paper, fine liner

Geofiguratime Museum Programming / Program diagram / 8.5 x 11 inches / paper, fine liner

"Family Visit" / Architectural atmosphere collage inside your museum / 8.5 x 11 inches / mixed media
Research + Analysis Techniques

Area of Study / Vancouver Site Drawing / 8.5 x 11 inches / paper, marker, pencil

"My room" / Scale drawing of your room – plan / 11 x 8.5 inches / paper, fine liner / Scale at 1” : 24”

"The Man on Uluru" / Surrealist collage / 11 x 8.5 inches / magazine, scissor, glue
Graphical Projection Drawings

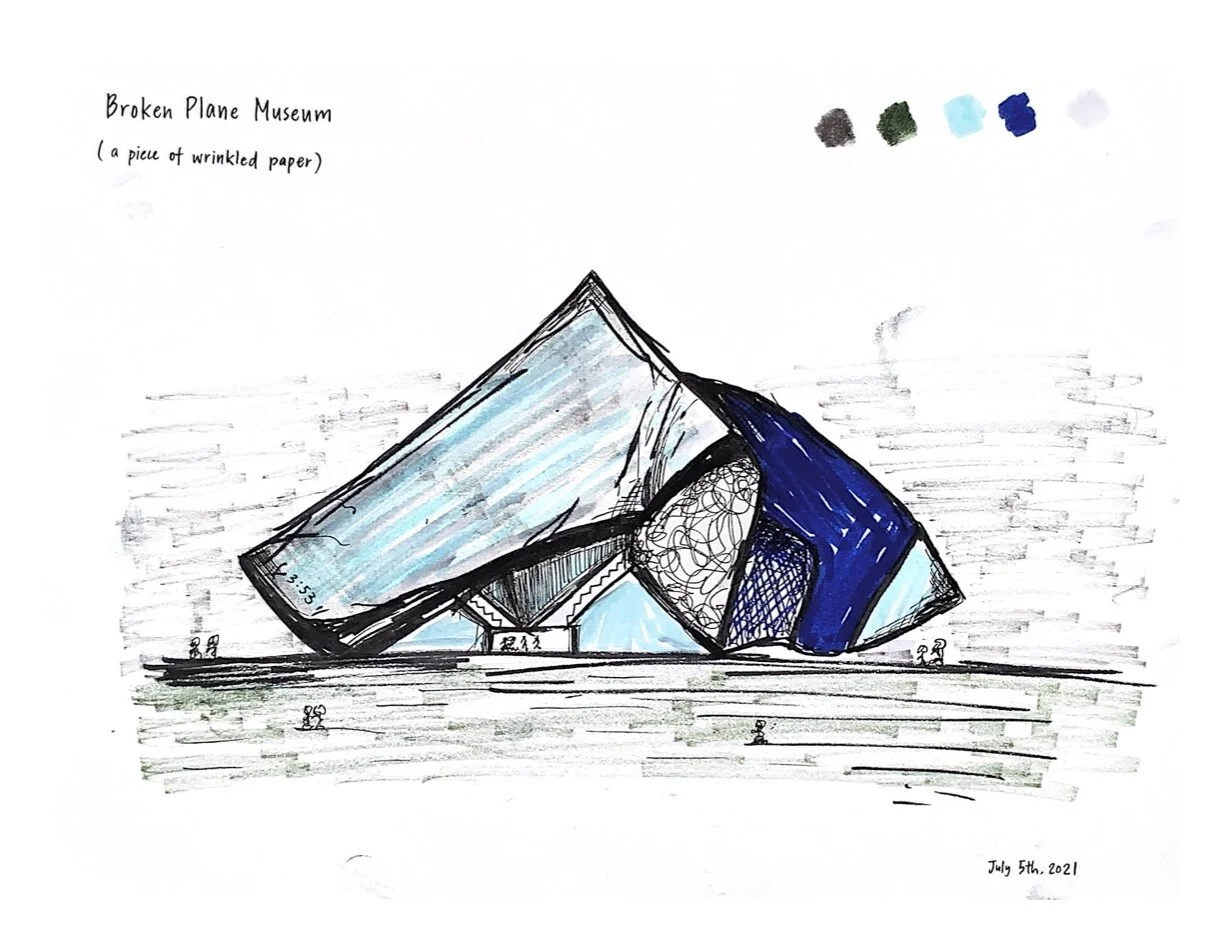

"Broken Plane Museum" / Drawing from line to Space (aka Wrinkle paper) / 8.5 x 11 inches / paper, marker, fine liner / "Designed a museum based on a piece of paper I wrinkled up."
"My Room with Air-conditioner" / Drawing one-point perspective / 8.5 x 11 inches / paper, fine liner / "I wish I had an air-conditioner during this hot summer."
"City of unknown" / Drawing three-point perspective / 8.5 x 11 inches / paper, pencil
